openEHRComputable Specifications

Introduction
Overview of the Generators

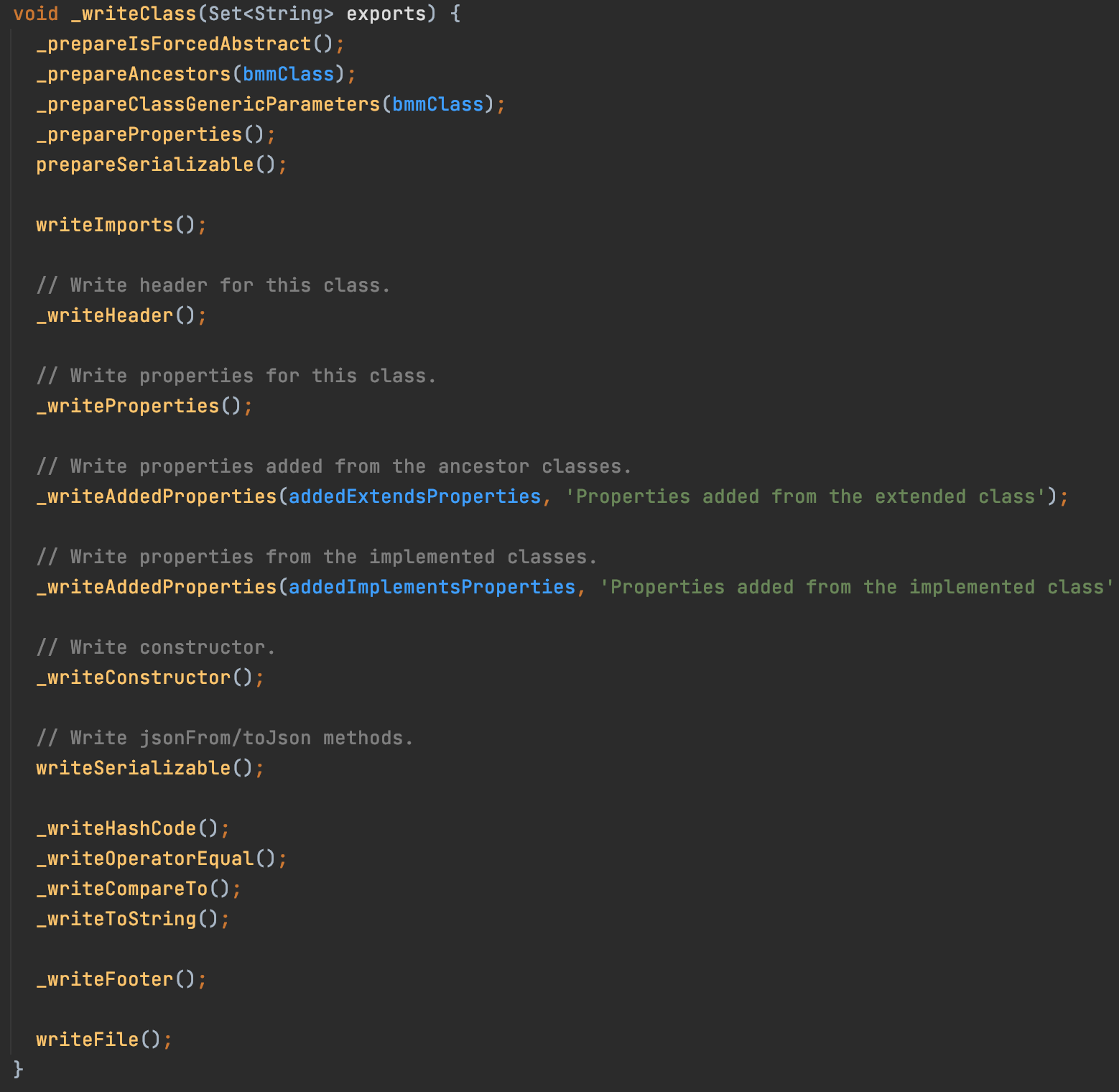

AM / RM Models Generator

If a human wrote computable specifications then there is no need for another human to implement them in code. The code should be generated by a computer.
NeoEHR.com

Introduction

Computable Specifications

From my experience, modern applications cannot be written by hand anymore. There are 100s of similar web forms and components to write (and all the plumbing that is needed). Even if a team writes them by hand, they are hard to maintain and the application usually remains on old framework versions even before it is released.

When I was reading the openEHR architecture overview I couldn't stop thinking that many things could be generated from the computable specifications.

I decided to generate code to enable high performance scenarios - integrations, data transfer on the server-side and validations of data in the frontend applications to make it more responsive to the users. Data is also validated on the server-side.

openEHR specifications are detailed but also complex. Why risk introducing bugs while converting them into code? Why not generate as much code as possible?

Overview

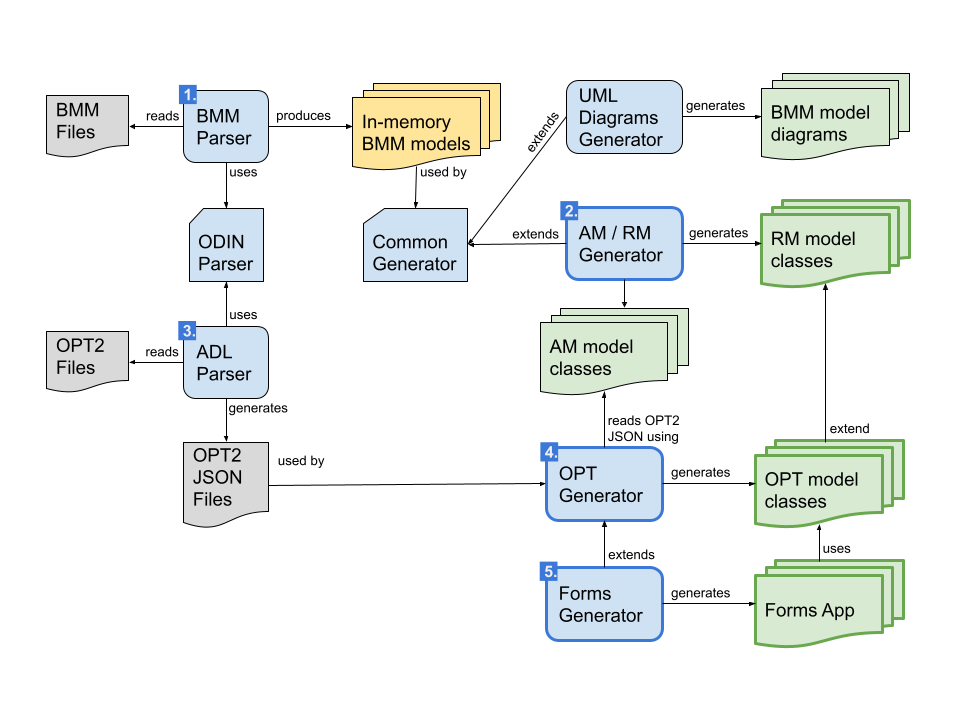

Overview of the Generators

BMM

Basic Meta Model

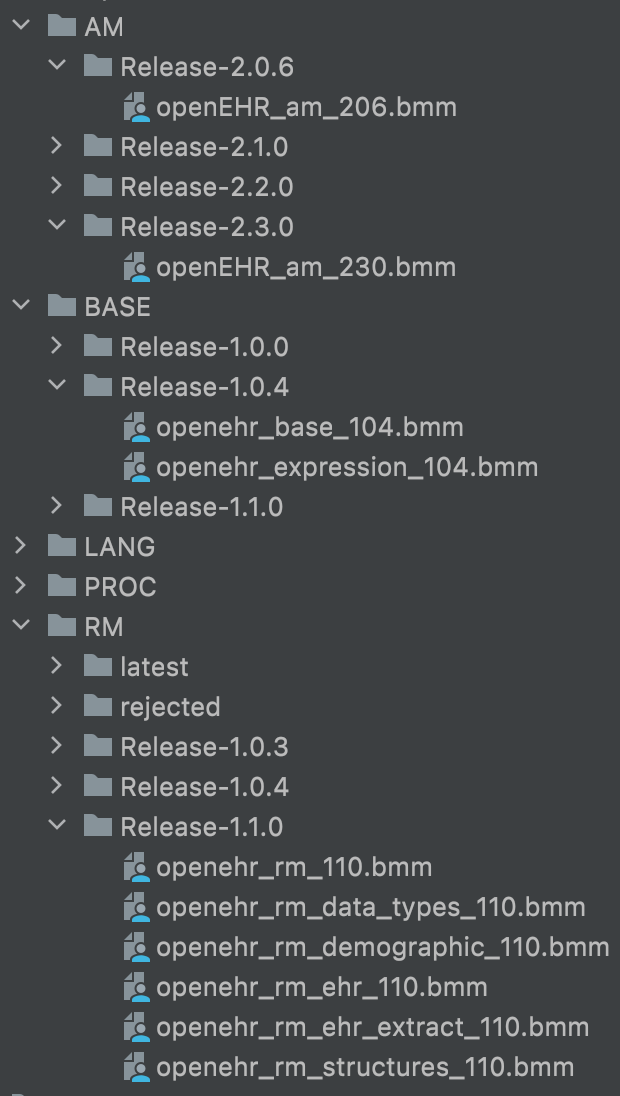

openEHR uses Basic Meta Model (BMM) files for the representation of object models. These files are found in the specifications-ITS-BMM repository.

All generators use these BMM files as their starting point. They are read directly from the repository.

BMM Parser reads the BMM files and prepares an in-memory model for the included object models. All generators use this in-memory model to get information about types, attributes,...

ODIN Parser is a library used by the BMM Parser and the ADL Parser.

ADL Parser reads the OPT2 files and prepares an in-memory model for the included operational templates. It converts OPT2 (ADL) to JSON.
